Industrial Floor Tile

Discover versatility with our Industrial floor Tile, available in customizable different colors to suit your needs.These tiles are specifically engineered to withstand heavy foot traffic, equipment, and various environmental conditions while also prioritizing sustainability and eco-friendliness.


Get​​​​ Quote​​



Overview

Introducing our Industrial Floor tile which are often called Ecotiles are versatile flooring solutions that find applications across various industries and environments due to their sustainability, durability, and ease of installation. These tiles are commonly used in industrial settings such as warehouses, factories, and workshops where heavy foot traffic and equipment movement are prevalent, providing a resilient and long-lasting flooring solution.

One of the special features of these tiles is their eco-friendliness, as they are made from recycled or sustainable materials, contributing to environmental conservation efforts. Additionally, these tiles have special feature of interlocking allowing for easy and quick installation without the need for adhesives or specialized tools. Safety is paramount in the use of these tiles, with features such as slip resistance, shock absorption, and fire resistance incorporated into their design to minimize the risk of accidents and injuries in the workplace.

Furthermore, these tiles are low-maintenance and easy to clean, reducing the need for harsh chemicals and promoting a safer and healthier working environment for employees. Regular inspection and maintenance of these tiles are essential to ensure their continued performance and safety, including addressing any damaged or worn tiles promptly to prevent trip hazards and maintain optimal functionality.

There are two type of tiles available which are Smooth and Raised Disk whose parameters are shown in below tables as:




Smooth

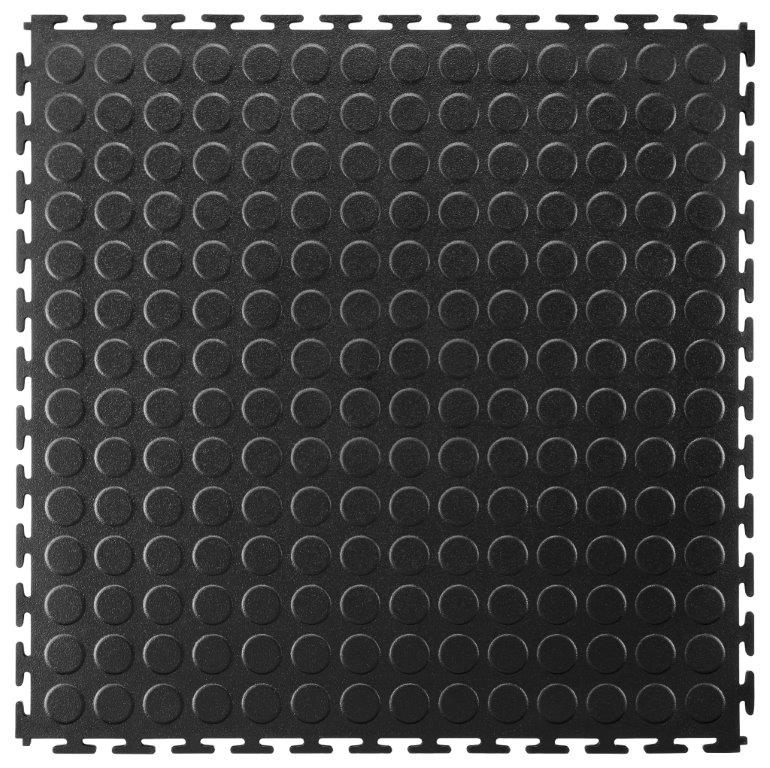

  Raised Disk

Dimension

500x500mm

500x500mm

Thickness

6.8mm +/-0.3mm

7.6mm +/-0.3mm

Weight

8.86kgs/m²

9.1kgs/m²

  Guarantee

10 Years

  10 Years

Anticipated Service life

25 Years +

  25 Years +

Material

PVC

  PVC

Joint

Dovetail

  Dovetail

Slip Resistance

Pass, R10

Pass, R10

  Fire Performance

Class 1 Spread of Flame Bfl-S1

Does not support combustion

Class 1 Spread of Flame Bfl-S1

Does not support combustion

Stain Resistance

Good

Good

Abrasion Wear Resistance

50K Cycles Group T

  50K Cycles Group T

Mechanical Resistance

17N/mm2

17N/mm2

Resistance to Hot Objects

Good

Good

Thickness of wear layer

6 to 10mm

6 to 10mm

Hardness

89-92 Shore A

89-92 Shore A

Impact Resistance

549kg/cm²

549kg/cm²

Noise Reduction

>46db

>46db

Thermal Insulation

1.1 m²K/W

1.1 m²K/W

Determination of Length, Squareness & Straightness

<0.13% / 0.5mm max

<0.13% / 0.5mm max

Chemical Resistance

Good resistance to most commonly used chemicals. Common acid oils & gas oil - No deterioration / Solvents - Not resistant to prolonged contact

Good resistance to most commonly used chemicals. Common acid oils & gas oil - No deterioration / Solvents - Not resistant to prolonged contact

Color Fastness

5

5

Features

Sustainable Materials

These tiles are made from recycled or sustainable materials such as recycled rubber, reclaimed wood, bamboo, or recycled plastics. These materials reduce the environmental impact of production and minimize waste.

Durability

Industrial environments require flooring solutions that can withstand heavy loads, impact, abrasion, and chemical exposure. Eco tiles are designed to be highly durable and resistant to wear and tear, ensuring long-term performance and cost-effectiveness.

Easy Installation

Eco tiles have interlocking or modular designs that allow for easy installation without the need for adhesives or specialized equipment. This facilitates quick and hassle-free installation, minimizing downtime during flooring upgrades or renovations.

Versatility

Industrial floor eco tiles come in various sizes, colors, and patterns to suit different aesthetic preferences and functional requirements. They can be used in a wide range of industrial settings such as warehouses, factories, workshops, garages, and laboratories.

Safety

 These tiles are engineered to provide slip resistance, shock absorption, and ergonomic comfort to enhance safety in industrial environments. Some tiles may feature textured surfaces or specialized coatings to improve traction and reduce the risk of slips and falls.

Easy Maintenance

 Eco tiles are low-maintenance and easy to clean, requiring simple sweeping, mopping, or vacuuming to keep them looking their best. Some tiles may be resistant to stains, moisture, and mold growth, further simplifying maintenance efforts.

Recyclability

 At the end of their lifecycle, these eco tiles can be recycled or repurposed, minimizing waste and promoting a circular economy.


Application

  • Warehouse and Distribution Centers
  • Manufacturing Facilities
  • Automotive Workshops
  • Garages
  • Food and Beverage Processing Plants
  • Pharmaceutical and Healthcare Facilities
  • Laboratories
  • Retail and Commercial Spaces
  • Sports and Fitness Facilities

Overall, industrial floor eco tiles offer versatile and sustainable flooring solutions for a wide range of industrial, commercial, and institutional applications, helping to create safer, healthier, and more environmentally friendly environments.


Delivery

At HITECH Automation, we offer comprehensive support throughout every stage of your project. This means we not only manufacture the perfect Standing Pallet Stacker to meet your specific requirements but also provide delivery services. Handling materials, whether for large or small projects, can be a challenging task. That's why our team of fencing solution experts is always at your service to provide guidance, recommendations, and expert services. With our assistance, you can enjoy the benefits of safe and secure product efficiently and effectively. Your satisfaction and safety are our top priorities.



Warranty

These Tiles comes with a Ten year warranty provides assurance to the customer regarding the quality and reliability of the equipment



Standard Colors

Smooth Tiles comes in these colors:

  • Light Grey
  • Red
  • Green
  • Dark Grey
  • Graphite
  • Yellow
  • Black
  • Dark Blue


 Raised Disk Tiles comes in these colors:

  • Black
  • Dark Blue
  • Graphite
